Power Source Output: 110V to 240V~ (50Hz/ 60Hz) 1.2A (max) Main unit input: 30VDC 1.3A Output Primary tip Vibration excursion: ≤100 μm Output half-excursion force: <N Output tip Vibration frequency: 28kHz± 3kHz Output Power: 3W to 20W Main Unit Fuse: 250VT 2.0AL Water Pressure: 0.1bar to 5bar (0.01MPa to 0.5MPa) Main Unit Weight: 0.68kg Power Source Weight: 0.3Kg Power source input: 100V to 240V~ 50Hz/60Hz 1.2A (max)

1 x Main unit 1 x Handpiece 1 x Foot switch 6 x Tips 1 x Adapter 1 x Torque wrench 1 x Operation manual

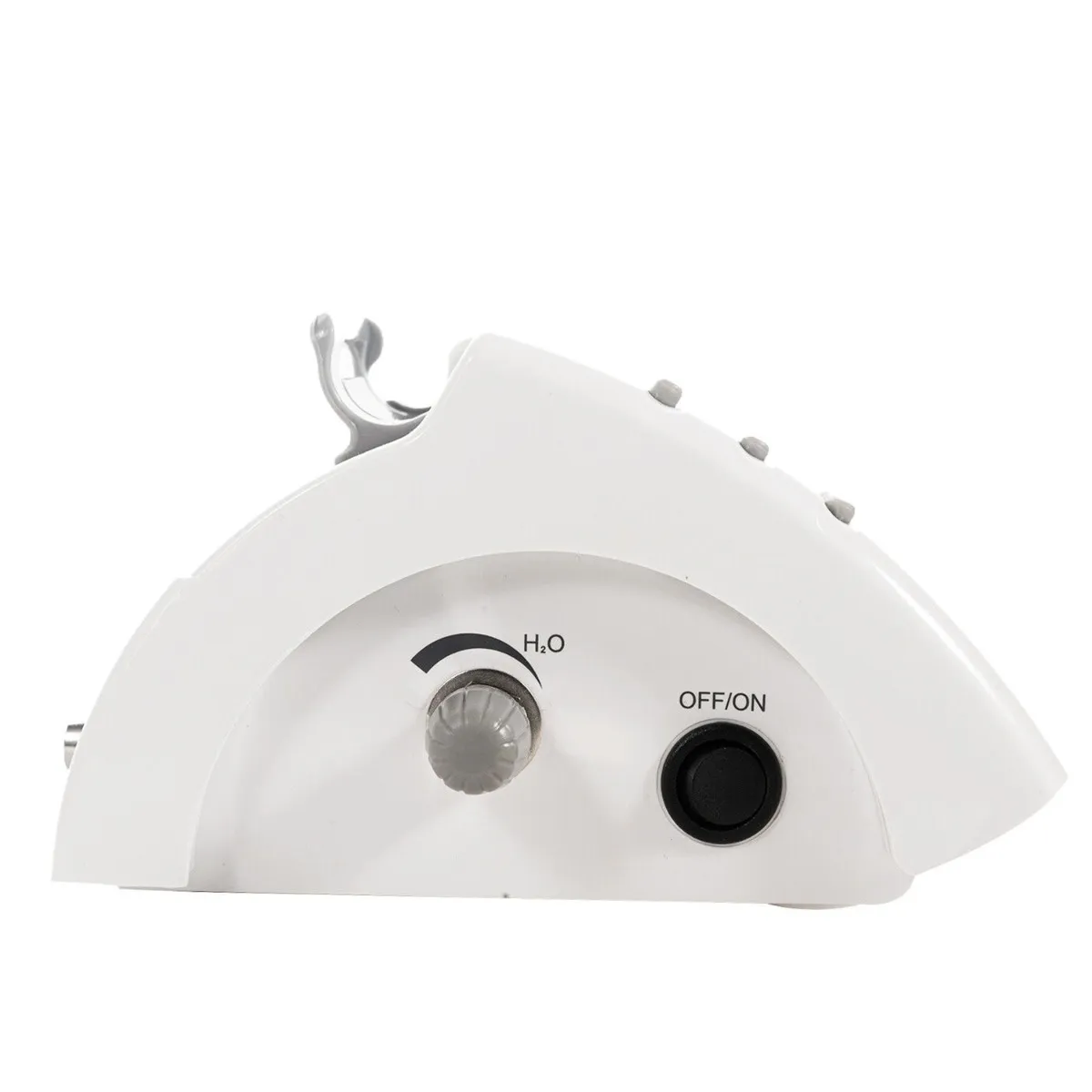

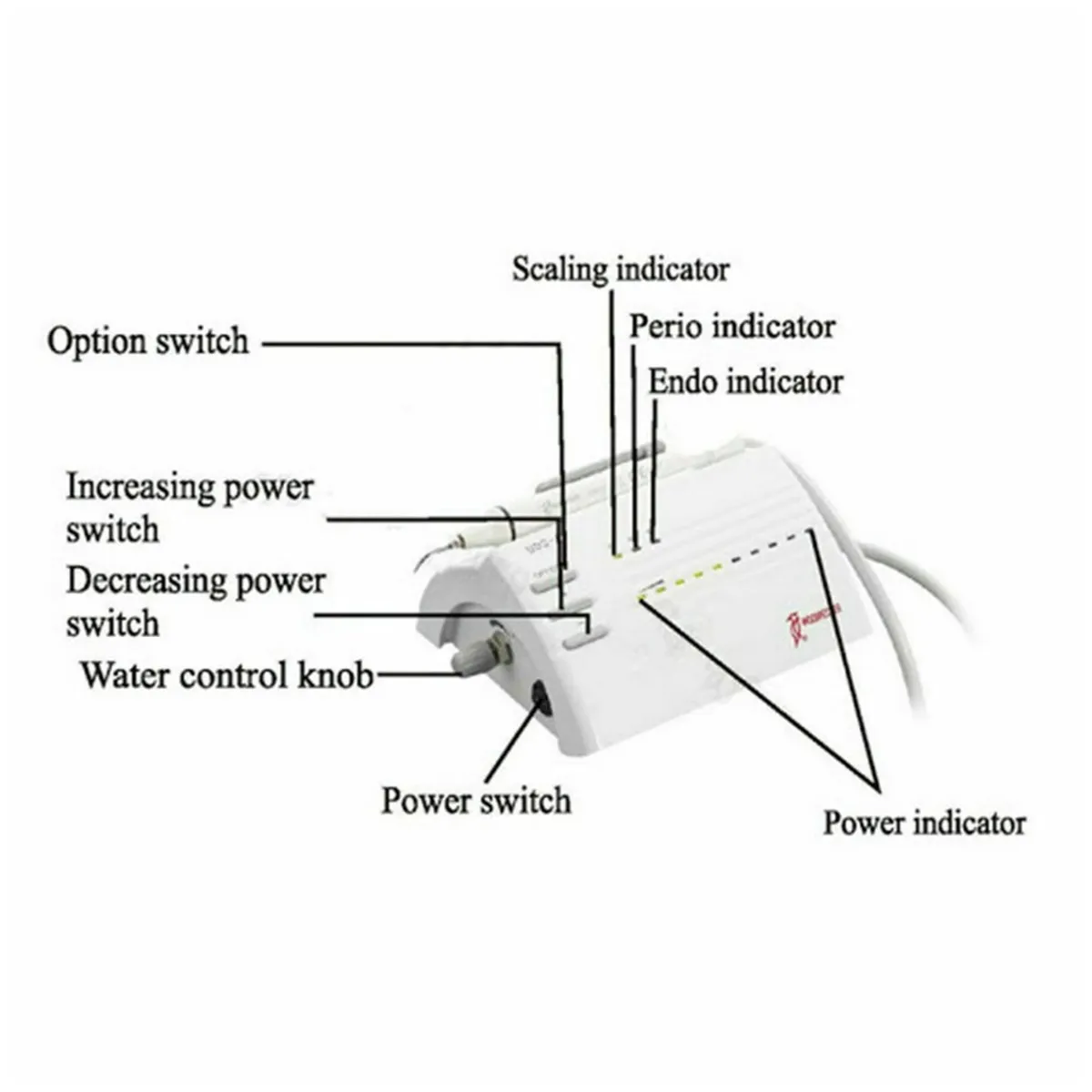

Unpack the equipment and ensure that all parts and accessories are complete as per the packing list. Place the main unit on a stable surface. Turn the water control switch to the maximum position based on the symbol indicated. Insert the plug of the foot switch into its socket. Connect one end of the water pipe to the water entrance of the scaler and the other end to a pure water source. Select a suitable scaling tip and screw it tightly onto the handpiece using the torque wrench. Make sure to connect the handpiece and the cable connector correctly. Insert the plug of the power source into its socket and turn on the power. Switch on the main unit. The scaling indicator and the first five lights of the power regulator should illuminate. Ensure that the scaling tip does not touch the teeth vertically or exert excessive pressure on the tooth surface to avoid damage. Use a light touch and a gentle back-and-forth motion to remove tartar. Adjust the vibration intensity as needed by turning the vibration intensity knob to the middle grade. Use caution not to harm the teeth or the tip. After completing the scaling operation, keep the machine working for 30 seconds with water supply to clean the handpiece and scaling tip. Unscrew the scaling tip and remove the handpiece for sterilization. Do not remove the handpiece while the machine is still running.

Country of Origin: PRC Manufacturer: Woodpecker

Manufacturer/Importer Warranty of 1 Year on all the parts of the product & 5 years Warranty (from the date of invoice) on PCB (Power Circuit Board). Physical damage is not cover in any case Service and Warranty are handled by the manufacturer/importer directly for this product Supreme Dental will not be liable to replace the Products and the liability to replace any such Product is that of the Manufacturer/Importer Dentalkart and the Buyer acknowledge that the Products purchased/used are a subject matter of original Manufacturer/Importer’s warranties only Any or all claims in relation to returns and replacement shall be made to the concerned Manufacturer/Importer only and Supreme Dental may assist the customer in registering a request to get the Product replaced or serviced. The Buyer acknowledges that the Products once sold will not be exchanged or taken back unless the seal of the package or the Product is intact or not altered in any manner or is not tampered as the case may be.

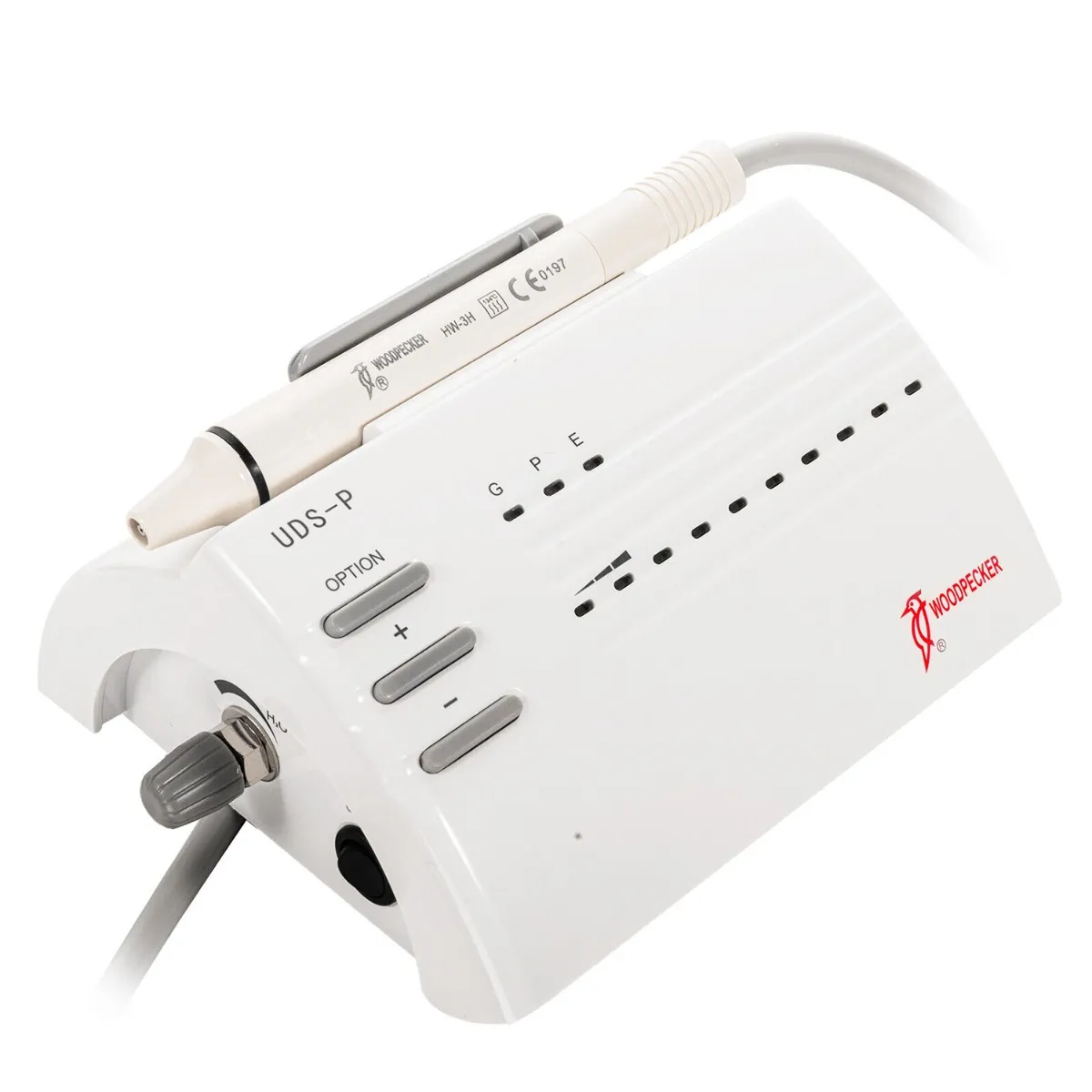

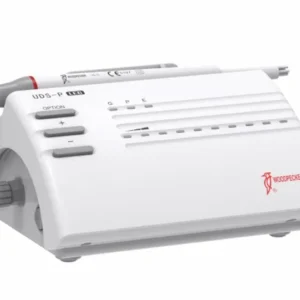

Woodpecker UDS-P Ultrasonic Scaler ( With 5 periodontal Tips and 1 Endodontic Tip)

Q: Description

Ultrasonic scaler with sealed handpiece and two modes for scaling

Q: Packaging

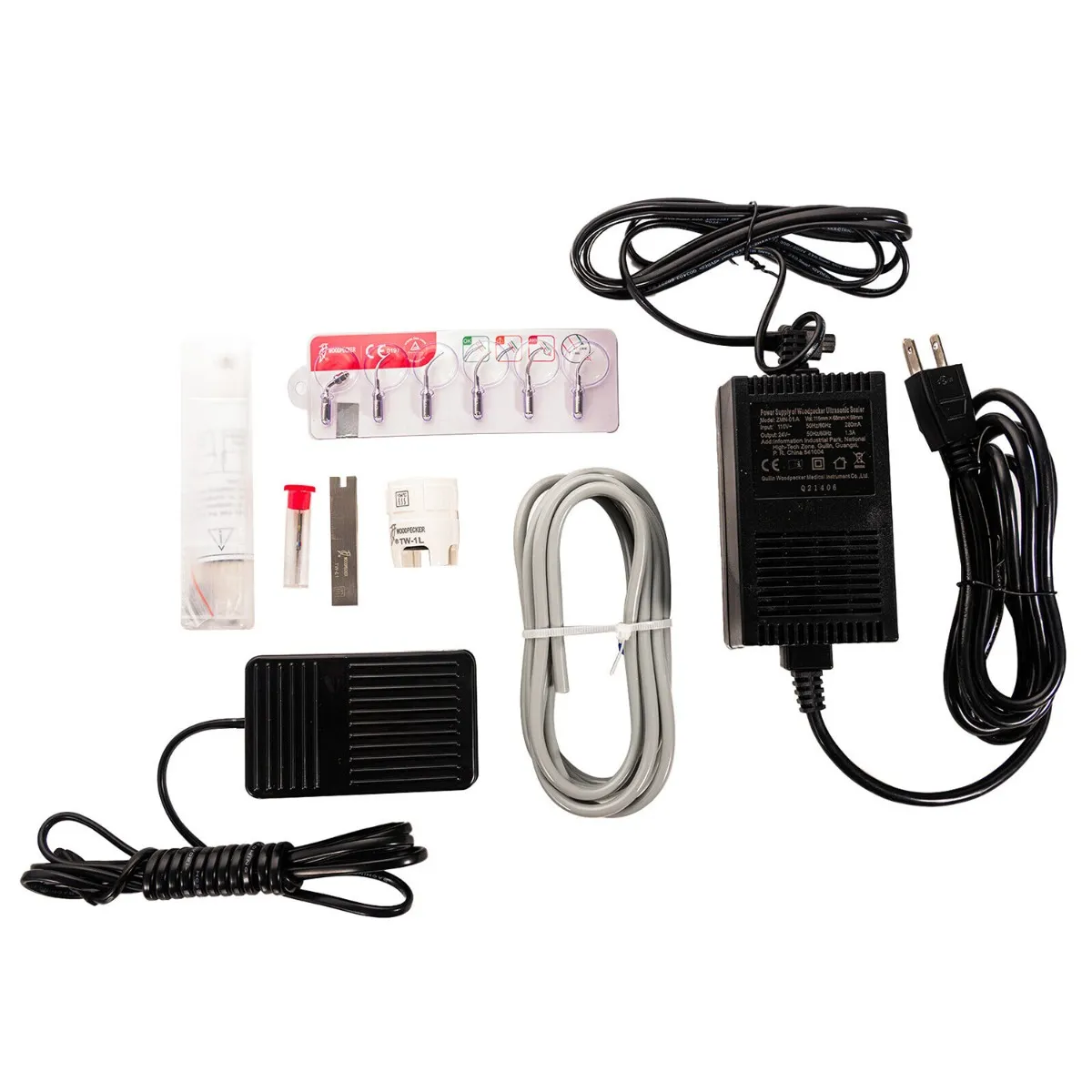

1 x Main unit 1 x Handpiece 1 x Foot switch 6 x Tips 1 x Adapter 1 x Torque wrench 1 x Operation manual

Q: Directions to Use

Unpack the equipment and ensure that all parts and accessories are complete as per the packing list. Place the main unit on a stable surface. Turn the water control switch to the maximum position based on the symbol indicated. Insert the plug of the foot switch into its socket. Connect one end of the water pipe to the water entrance of the scaler and the other end to a pure water source. Select a suitable scaling tip and screw it tightly onto the handpiece using the torque wrench. Make sure to connect the handpiece and the cable connector correctly. Insert the plug of the power source into its socket and turn on the power. Switch on the main unit. The scaling indicator and the first five lights of the power regulator should illuminate. Ensure that the scaling tip does not touch the teeth vertically or exert excessive pressure on the tooth surface to avoid damage. Use a light touch and a gentle back-and-forth motion to remove tartar. Adjust the vibration intensity as needed by turning the vibration intensity knob to the middle grade. Use caution not to harm the teeth or the tip. After completing the scaling operation, keep the machine working for 30 seconds with water supply to clean the handpiece and scaling tip. Unscrew the scaling tip and remove the handpiece for sterilization. Do not remove the handpiece while the machine is still running.

Q: Additional Info

Country of Origin: PRC Manufacturer: Woodpecker

Q: Warranty

Manufacturer/Importer Warranty of 1 Year on all the parts of the product & 5 years Warranty (from the date of invoice) on PCB (Power Circuit Board). Physical damage is not cover in any case Service and Warranty are handled by the manufacturer/importer directly for this product Supreme Dental will not be liable to replace the Products and the liability to replace any such Product is that of the Manufacturer/Importer Dentalkart and the Buyer acknowledge that the Products purchased/used are a subject matter of original Manufacturer/Importer’s warranties only Any or all claims in relation to returns and replacement shall be made to the concerned Manufacturer/Importer only and Supreme Dental may assist the customer in registering a request to get the Product replaced or serviced. The Buyer acknowledges that the Products once sold will not be exchanged or taken back unless the seal of the package or the Product is intact or not altered in any manner or is not tampered as the case may be.
