• Performs Multi-function, works on three modes(Scaling, perio, and endo).
• It has a feature of automatic frequency tracking which ensures that the machine always works on the best frequency.
• The handpiece is detachable and can be autoclaved to 135℃ and 0.22MPa.
• The cable is made from a silica gel tube which is soft and durable.
• The cavitation produced at the end of the scaling tip helps in easy cleaning of the teeth.
• It Eliminates dental calculus, bacterial plaque, and tea stains on the teeth quickly without hurting the gum or the enamel.
• Automatic frequency tracking ensures that the machine always works on the best frequency and performs functions more steadily.
• Digitally controlled, easy operation, and more efficient in scaling.
• Compatible with EMS, you could connect your EMS handpiece with this control box, and you could also connect this Woodpecker UDS handpiece with the EMS control box.
• CE and FDA certificated.

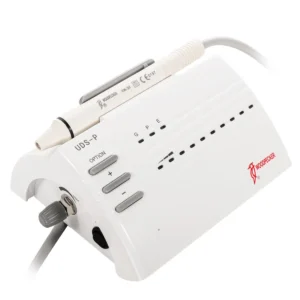

Ultrasonic Scaler with autoclavable titanium-coated detachable non-optic handpiece.

• Power supply input: 220-240V~ 50Hz/60Hz 150mA
• Main unit input: 24V~ 50Hz/60Hz 13A
• Output primary tip Vibration excursion: <100pm
• Output tip Vibration frequency: 28kHz+3kHz
• Output half-excursion force: <2N
• Output power: 3W to 20W
• Main unit fuse: T1.6AL 250V
• Power supply fuse: TO.5AL 250V
• Water pressure: 0.1 bar to 5 bar (0.01MPa to 0.5MPa)
• Weight of main unit: 0.65kg
• Weight of power supply: 1 kg

• 1 x Main unit
• 1 x Handpiece
• 1 x Footswitch
• 6 x Tips
• 1 x Adapter
• 1 x Torque wrench
• 1 x Operation manual

Preparing the Scaler:

• • Ensure that the scaler and its components are clean and sterilized before each use. If necessary, refer to the manufacturer’s instructions for proper cleaning and sterilization procedures.
  • Connect the scaler to a suitable power supply (220-240V~ 50Hz/60Hz) using the provided power cord.
  • Make sure the handpiece is securely attached to the main unit.

Selecting and Attaching Tips:

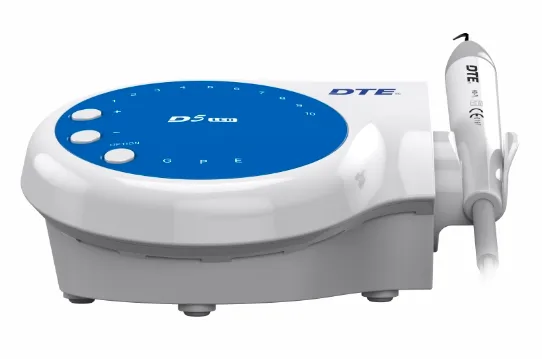

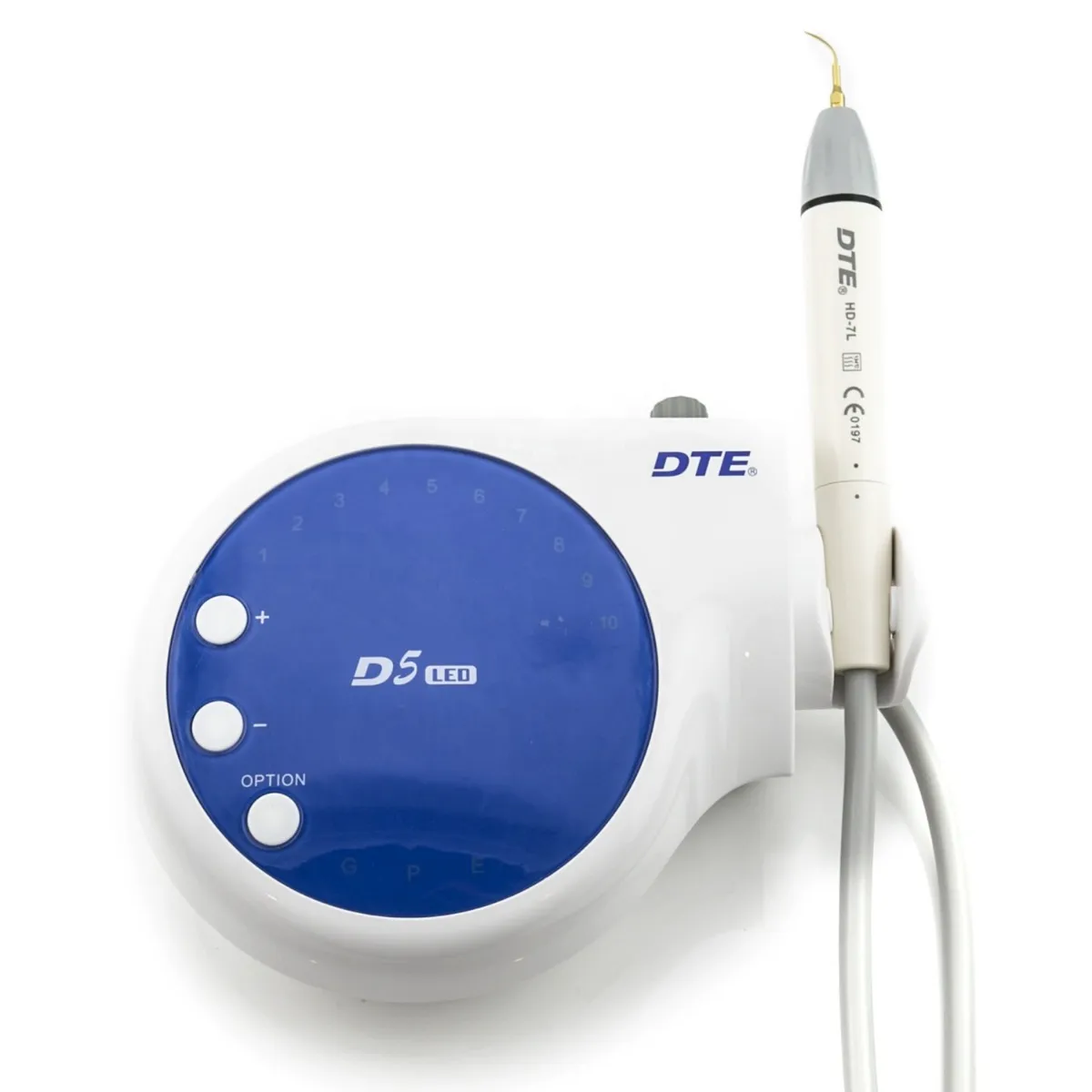

• • Choose the appropriate tip for the desired dental procedure. The D5 scaler is compatible with a variety of tips designed for different applications.
  • Insert the selected tip into the handpiece firmly until it clicks into place.

Adjusting Settings:

• • Familiarize yourself with the scaler’s digital controls. These controls allow you to adjust the settings for optimal performance.
  • Use the control panel or buttons to set the desired power output, frequency, and scaling mode according to the specific requirements of the treatment.

Preparing the Patient:

• • Ensure the patient is comfortably seated in the dental chair and properly positioned for the procedure.
  • Consider applying a topical anesthetic or using other appropriate methods to minimize patient discomfort during the scaling process.

Scaling Procedure:

• • Hold the scaler’s handpiece in a comfortable grip, ensuring a secure hold during the procedure.
  • Place the tip of the scaler gently on the tooth surface, angling it as needed to access the targeted area.
  • Activate the scaler by pressing the appropriate button or control. Begin scaling with light, controlled movements, gradually increasing the pressure if necessary.
  • Move the tip along the tooth surface, focusing on areas with tartar or plaque buildup. Use a sweeping motion and avoid applying excessive pressure to prevent discomfort or damage to the tooth enamel.

Rinse and Repeat:

• • Periodically rinse the tooth surface and the scaler tip with water or an appropriate dental solution to remove debris and maintain visibility.
  • Continue the scaling process, moving from tooth to tooth, until the desired level of cleanliness and treatment is achieved.
