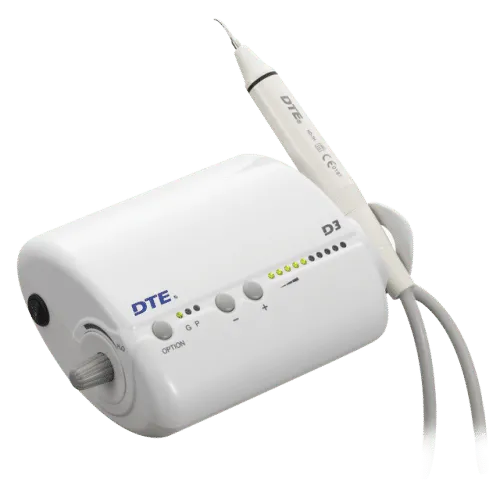

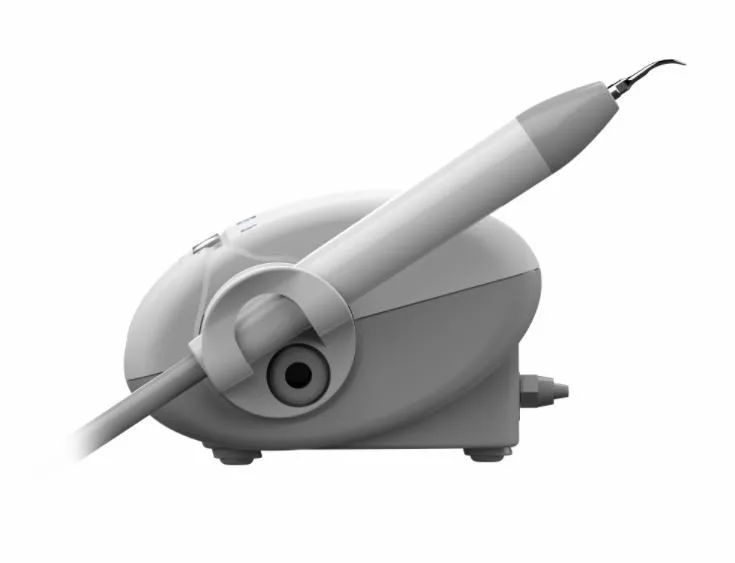

Woodpecker DTE D3 Ultrasonic Scaler With Fixed H/P With 5 Tips

Woodpecker DTE D3 Ultrasonic Scaler With Fixed H/P With 5 Tips - Image 3

Woodpecker DTE D3 Ultrasonic Scaler With Fixed H/P With 5 Tips

( No Customer Rating )

Efficient ultrasonic scaler with fixed handpiece, 5 tips

Price:

₹10,500.00

Brand:

Woodpecker

Check Availability At

Please enter PIN code to check delivery time & Pay on Delivery Availability

Features

Digitally controlled.
Different functions i.e general, perio.
The cable is made from a silica gel tube which is soft and durable.
The cavitation produced from the end of the scaling tip helps in easy cleaning of teeth.
Digitally controlled and automatic frequency tracking ensures that the machine always works on the best frequency and functions more steadily.
It helps in eliminating the dental calculus, bacterial plaque, and tea stains on the teeth quickly without hurting gums or the enamel.
Small and light for easy operation.

Description

Efficient ultrasonic scaler with fixed handpiece, 5 tips

Key Specifications

Technical parameter:

Main unit input: 24V-50Hz/60Hz 1.3A
Output power: 3W-20W
Frequency: 28kHz ± 3kHz
Water pressure: 0.1bar ~ 5bar(0.01MPa ~ 0.5MPa)
Main unit weight: 1kg
Dimensions: 198mm×134mm×80mm
Compatible Hanpiece: HD-1 Handpiece

Packaging

1 x Main unit
1 x Fixed handpiece
1 x Adapter of power supply
1 x Footswitch
5 x Scaling tips
1x Torque Wrench
1x Waterpipe
4x Waterproof “O” ring
1x Qualified certificate
1x Packing list
1x Instruction manual
1x Warranty card

Directions to Use

Connect the scaler to a suitable power source and ensure it is properly grounded.
Select the appropriate tip for the desired dental procedure.
Gently insert the selected tip into the handpiece until it securely locks in place.
Adjust the scaler settings according to the specific treatment requirements (e.g., power level, mode selection).
Prior to starting the procedure, ensure the patient is comfortable and properly positioned.
Hold the scaler in a comfortable grip, maintaining a firm but gentle grasp on the handpiece.
Position the tip at the desired treatment area, ensuring proper angulation for effective scaling.
Activate the scaler by pressing the foot pedal or the designated power button.
Move the tip in a controlled, overlapping motion, gradually removing calculus, plaque, or stains.
Monitor the patient’s comfort throughout the procedure, adjusting power levels or technique as necessary.
After completing the treatment, deactivate the scaler and remove the tip from the handpiece

Additional Info

Country of Origin: PRC
Manufacturer: Woodpecker

Warranty

Manufacturer/Importer Warranty of 1 Year on all the parts of the product & 5 years Warranty (from the date of invoice) on PCB (Power Circuit Board).
Physical damage is not cover in any case
Service and Warranty are handled by the manufacturer/importer directly for this product
Supreme Dental will not be liable to replace the Products and the liability to replace any such Product is that of the Manufacturer/Importer
Supreme Dental and the Buyer acknowledge that the Products purchased/used are a subject matter of original Manufacturer/Importer’s warranties only
Any or all claims in relation to returns and replacement shall be made to the concerned Manufacturer/Importer only and Supreme Dental may assist the customer in registering a request to get the Product replaced or serviced.
The Buyer acknowledges that the Products once sold will not be exchanged or taken back unless the seal of the package or the Product is intact or not altered in any manner or is not tampered as the case may be.

FAQs

Does it have LED?

Answer: No, the Woodpecker DTE D3 Ultrasonic Scaler with Fixed Handpiece and 5 Tips does not have LED functionality.

Can we use it for ultrasonic irrigation ?

Answer: No, Woodpecker DTE D3 with Fixed H/P and 5 Tips – Non LED is not suitable for ultrasonic irrigation as it lacks the necessary endo mode required for such procedures. While it features gingival and periodontal modes, which are beneficial for scaling tasks, the absence of the endo mode limits its functionality for ultrasonic irrigation.

What are the main functions of the Woodpecker DTE D3 scaler?

Answer: The Woodpecker DTE D3 scaler is primarily used for a dental cleaning and scaling procedures, removing calculus, plaque, and stains from the teeth. It offers versatile functionality with different modes such as general and periodontal, allowing for a wide range of dental treatments.
