Q: Key Specifications

Technical parameter: Works on 2 modes: General & Perio Automatic frequency tracking With 5 Tips (GD1 x 2, GD2, GD4, PD1) Main unit input: 24V-50Hz/60Hz 1.3A Power input : 100V to 240V~ 50Hz/60Hz 1.2A (Max) Output power: 3W to 20W Water pressure: 0.1bar ~ 5bar(0.01MPa ~ 0.5MPa) Frequency : 28kHz + 3kHz Dimension : 196 mm X 134 mm X 80 mm Main unit weight: 1kg

Q: Additional Info

Country of Origin: PRC Manufacturer: Woodpecker

Q: Warranty

Manufacturer/Importer Warranty of 1 Year on all the parts of the product & 5 years Warranty (from the date of invoice) on PCB (Power Circuit Board). Physical damage is not cover in any case Service and Warranty are handled by the manufacturer/importer directly for this product Supreme Dental will not be liable to replace the Products and the liability to replace any such Product is that of the Manufacturer/Importer Supreme Dental and the Buyer acknowledge that the Products purchased/used are a subject matter of original Manufacturer/Importer’s warranties only Any or all claims in relation to returns and replacement shall be made to the concerned Manufacturer/Importer only and Supreme Dental may assist the customer in registering a request to get the Product replaced or serviced. The Buyer acknowledges that the Products once sold will not be exchanged or taken back unless the seal of the package or the Product is intact or not altered in any manner or is not tampered as the case may be.

Question 1

Features

Accepted Answer

Digitally controlled.
The handpiece can be autoclaved under the high temperature of 135oC and the pressure of 0.22MPa.
Compatible with Satelec`handpiece and tips.
Different functions i.e general, perio.
The material of the handpiece made in America which is appointed as aero plastic components in Europe and America, which is FDA and NSF certificated.
The cable is made from a silica gel tube which is soft and durable.
The cavitation produced from the end of the scaling tip helps in easy cleaning of teeth.
Digitally controlled and automatic frequency tracking ensures that the machine always works on the best frequency and functions more steadily.
It helps in eliminating the dental calculus, bacterial plaque, and tea stains on the teeth quickly without hurting gums or the enamel.
Small and light for easy operation.

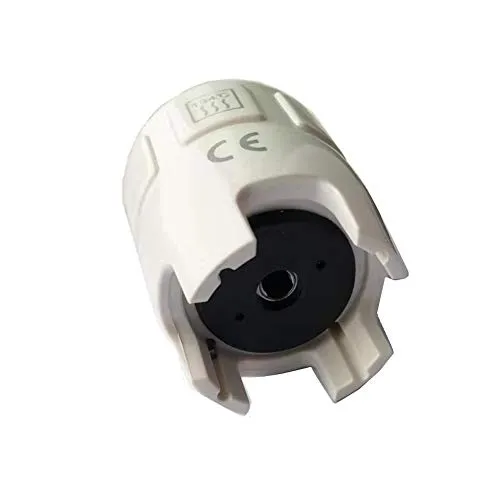

Detachable & autoclavable handpiece

Question 2

Description

Accepted Answer

Microcomputer controlled Ultrasonic Scaler

Question 3

Key Specifications

Accepted Answer

Technical parameter:

Works on 2 modes: General & Perio
Automatic frequency tracking

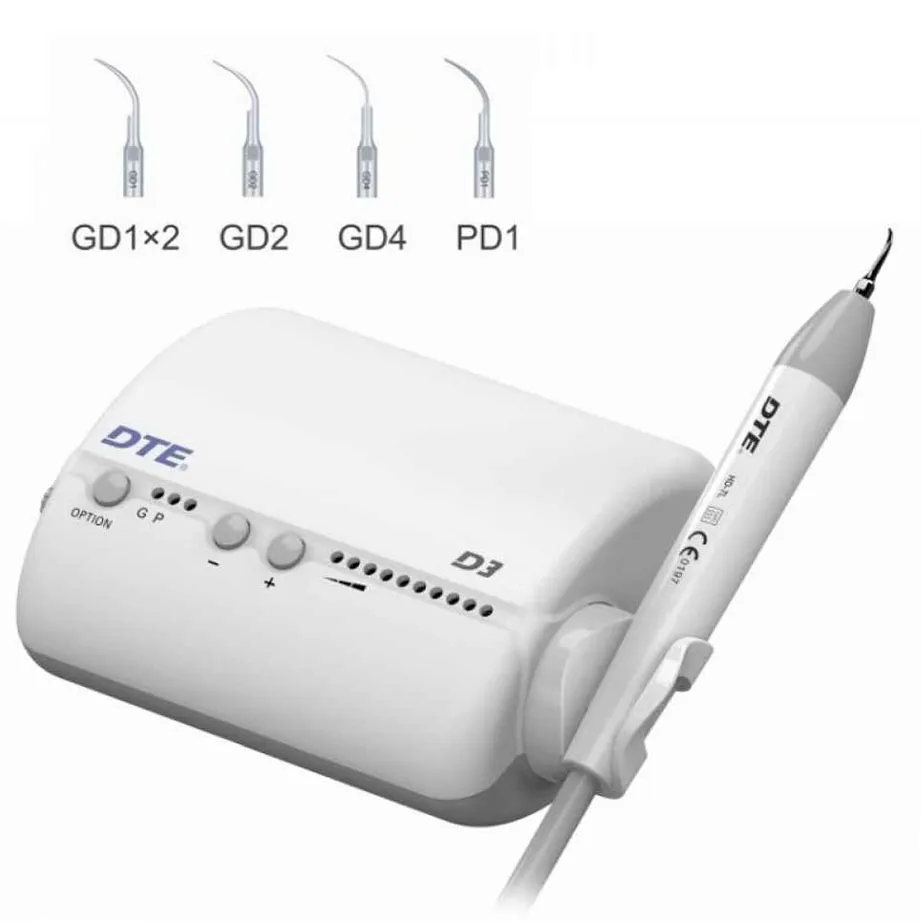

With 5 Tips (GD1 x 2, GD2, GD4, PD1)
Main unit input: 24V-50Hz/60Hz 1.3A
Power input : 100V to 240V~ 50Hz/60Hz 1.2A (Max)
Output power: 3W to 20W
Water pressure: 0.1bar ~ 5bar(0.01MPa ~ 0.5MPa)
Frequency : 28kHz + 3kHz
Dimension : 196 mm X 134 mm X 80 mm
Main unit weight: 1kg

Question 4

Packaging

Accepted Answer

1 x Main unit
1 x Detachable handpiece
1 x Adapter of power supply
1 x Footswitch
5 x Scaling tips
1x Torque Wrench
1x Waterpipe
4x Waterproof “O” ring
1x Qualified certificate
1x Packing list
1x Instruction manual
1x Warranty card

Question 5

Directions to Use

Accepted Answer

Ensure the device is properly connected to a power source and the handpiece is securely attached.
Select the desired mode of operation (general & perio) using the control panel.
Adjust the power level according to the specific dental procedure and patient’s comfort.
Apply a suitable amount of water or dental solution to the treatment area to ensure proper cooling and lubrication.
Gently guide the scaler tip along the tooth surface, maintaining light and controlled pressure.
Use a sweeping motion to remove plaque, tartar, or stains, moving from the gum line towards the tooth crown.
Pay attention to sensitive areas and adjust the power level or technique accordingly for patient comfort.
Periodically rinse the treatment area to remove debris and monitor the progress of the procedure.
After completing the treatment, switch off the device and disconnect the handpiece.
Clean and disinfect the handpiece according to the manufacturer’s instructions, ensuring proper sterilization for future use.

Question 6

Additional Info

Accepted Answer

Country of Origin: PRC
Manufacturer: Woodpecker

Question 7

Warranty

Accepted Answer

Manufacturer/Importer Warranty of 1 Year on all the parts of the product & 5 years Warranty (from the date of invoice) on PCB (Power Circuit Board).
Physical damage is not cover in any case
Service and Warranty are handled by the manufacturer/importer directly for this product
Supreme Dental will not be liable to replace the Products and the liability to replace any such Product is that of the Manufacturer/Importer
Supreme Dental and the Buyer acknowledge that the Products purchased/used are a subject matter of original Manufacturer/Importer’s warranties only
Any or all claims in relation to returns and replacement shall be made to the concerned Manufacturer/Importer only and Supreme Dental may assist the customer in registering a request to get the Product replaced or serviced.
The Buyer acknowledges that the Products once sold will not be exchanged or taken back unless the seal of the package or the Product is intact or not altered in any manner or is not tampered as the case may be.

Free Shipping for all Order of ₹ 30000

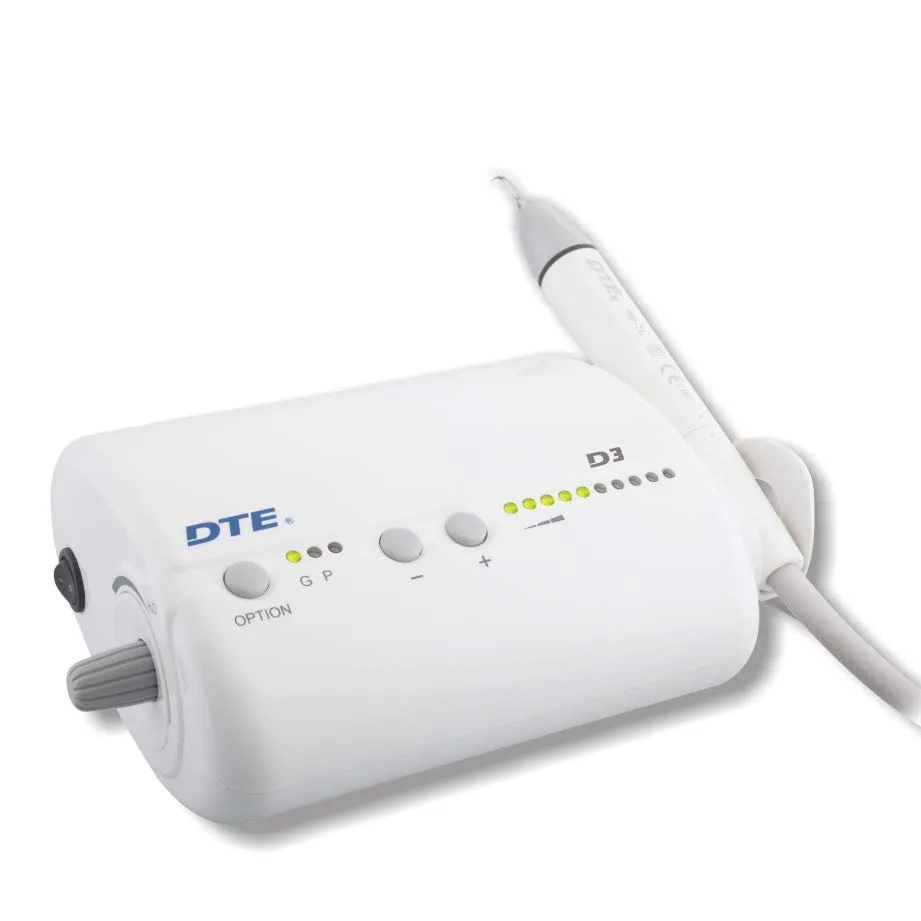

Woodpecker DTE D3 Ultrasonic Scaler With 5 Tips
